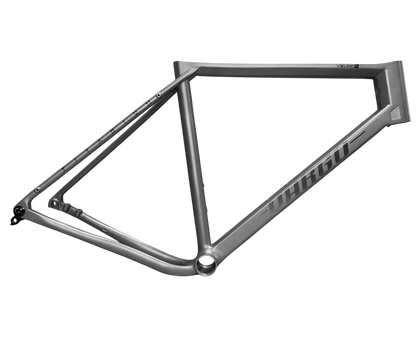

VELOCI-TI GRAVEL 3-D PRINTED FRAMESET

VELOCI-TI GRAVEL 3-D PRINTED FRAMESET

VELOCI-TI GRAVEL 3-D PRINTED FRAMESET

VELOCI-TI GRAVEL 3-D PRINTED FRAMESET

Frame SizeSize GuideGeometry
$5,795.00
$5,795.00
Sale Sold out
  • LIFETIME FRAME WARRANTY

    Precision titanium engineering backed for life.

    Learn more
  • EXPERT HELP

    Have questions, ask our professionals. We’re happy to help.

    Learn more
  • EASY FINANCING

    Get the bike you want with payments that work for you.

  • CUSTOM BUILT BIKE

    Want us to build your dream bike? Schedule a consultation.

    Learn more
View full details
PRODUCT DETAILS

VELOCI-TI GRAVEL 3-D PRINTED FRAMESET

TECHNICAL SPECIFICATIONS

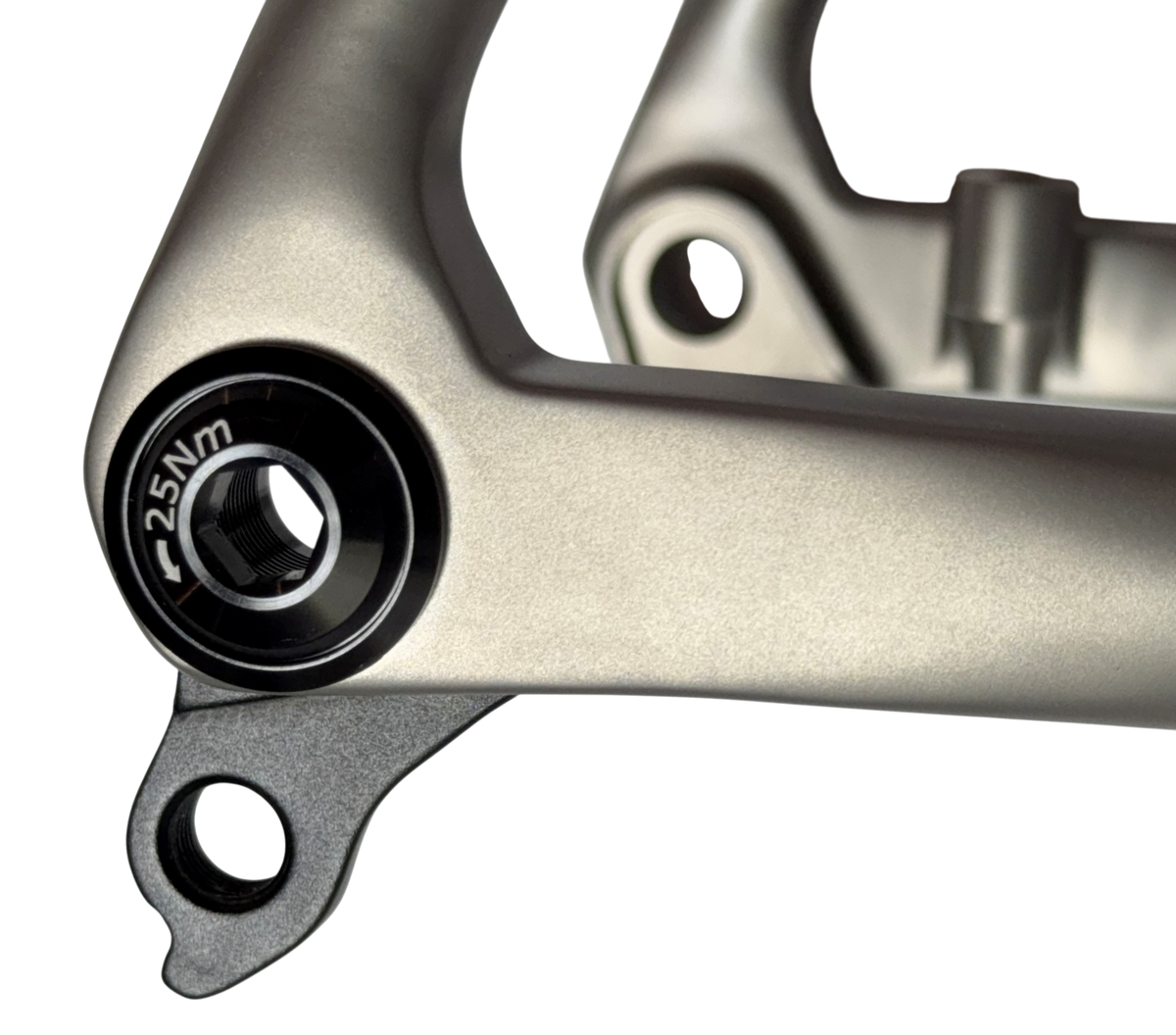

FRAMESET VARGO Veloci-Ti Gravel SeriesThreaded BB, UDH dropout

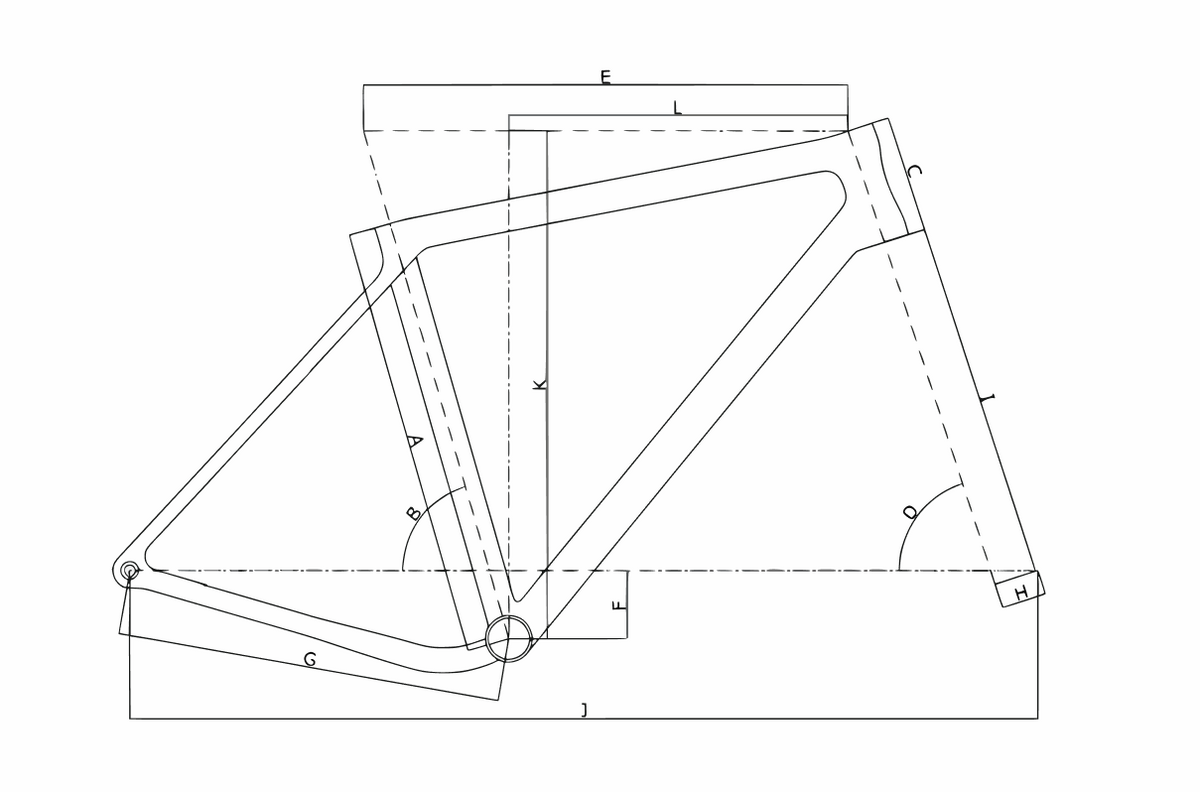

GEOMETRY
Frame sizeSML
A. Seat tube Lenght (C-T)47cm50cm53cm
B. Seat tube angle73.5°m73°m72.5°m
C. Head tube length140mm155mm170mm
D. Top tube angle71°71°71°
E. Top tube effective length54cm56cm58cm
F. BB Drop72mm72mm72mm
G. Chainstay length430mm430mm430mm
H. Fork rake50mm50mm50mm
I. Fork length395395395
J. WC1019.1.3mm1034.3mm1049mm
K. Stack562.5mm567.7mm590.9mm
L. Reach474.1mm383.7mm393.7mm
N. Trail69.769.769.7

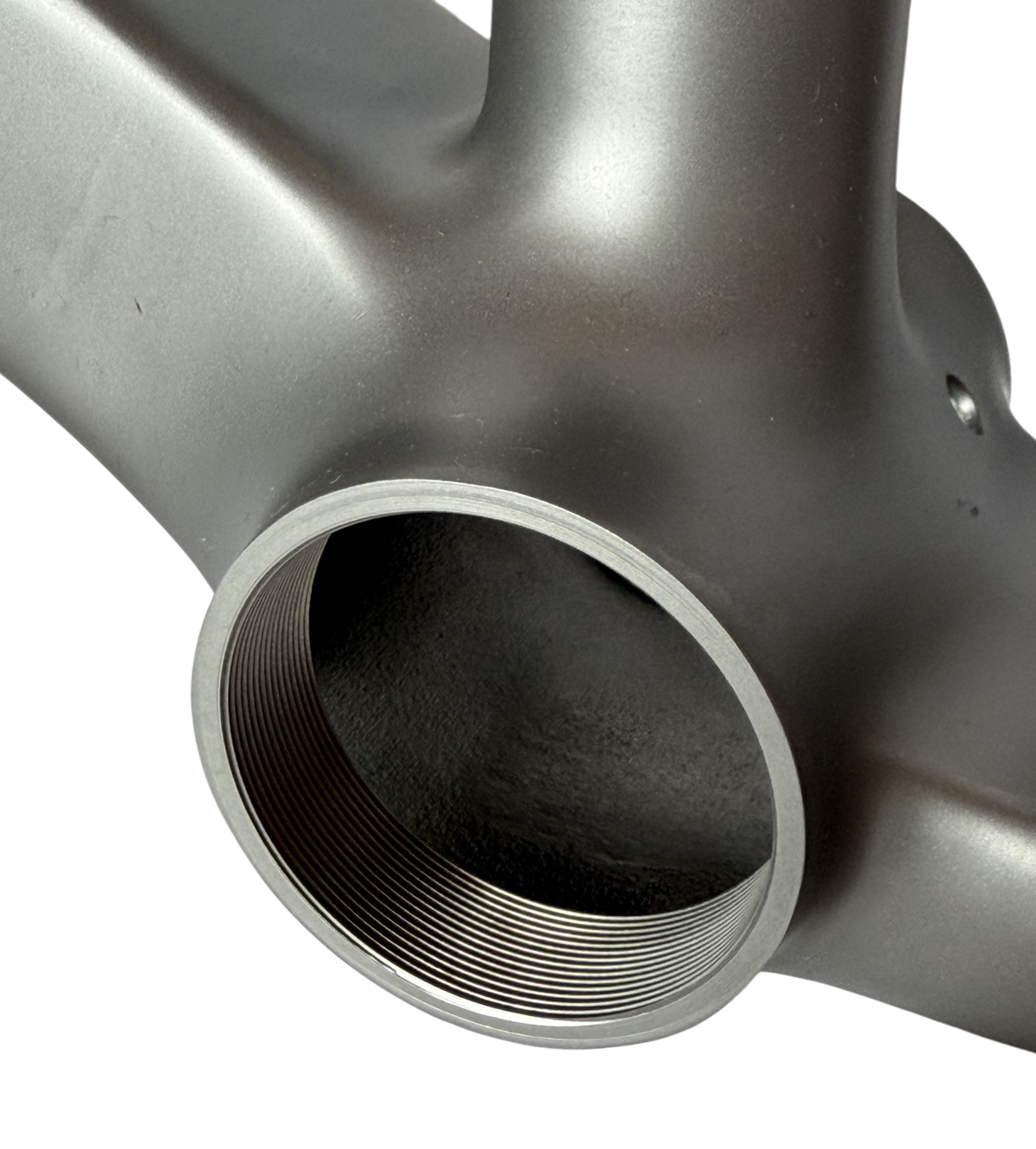

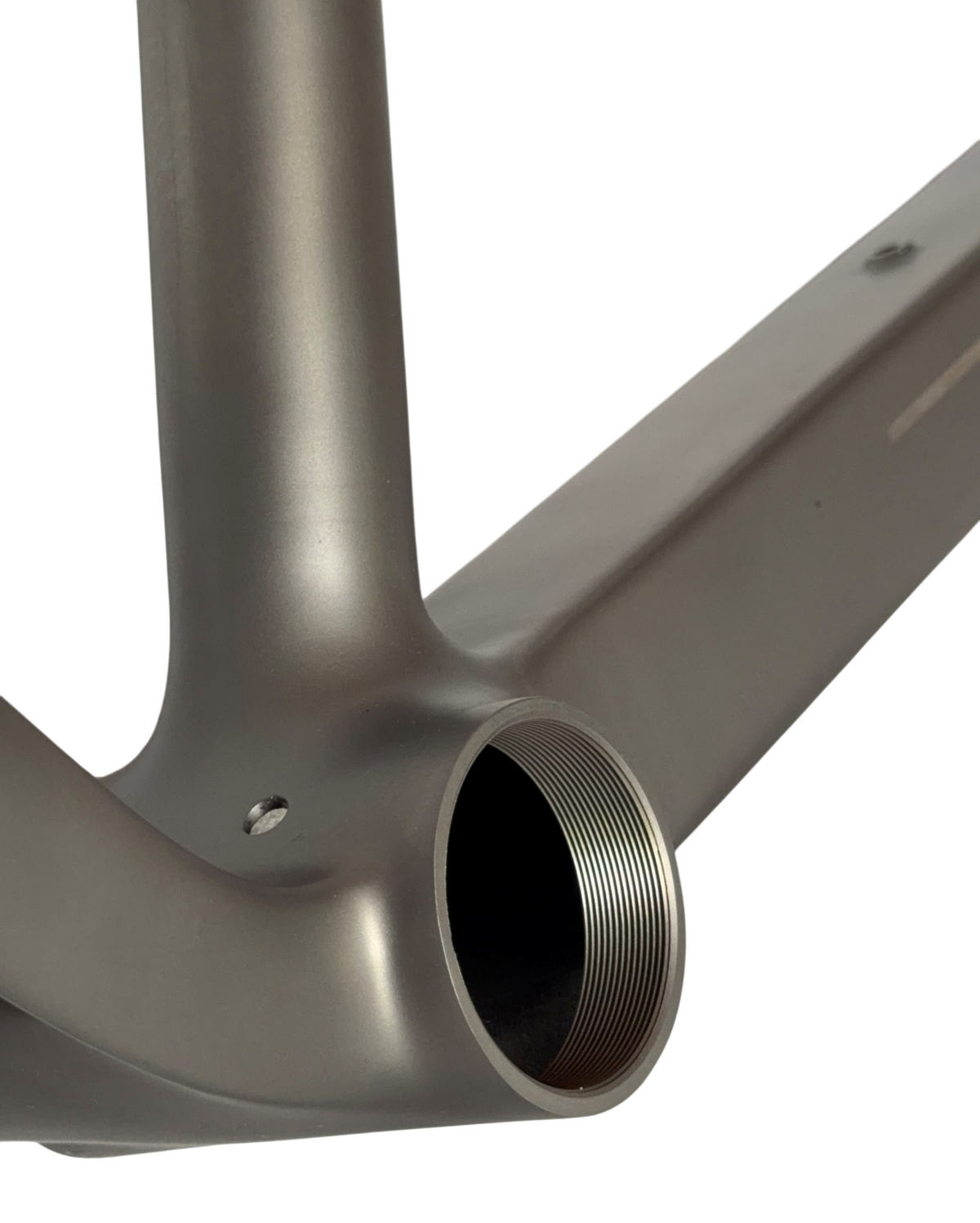

BBT47 85.5mmT47 85.5mmT47 85.5mm
SIZE GUIDE
Size Effective Top Tube Length Rider Height (cm) Inches
XS52152–163 cm5'0"–5'4"
S54160–170 cm5'3"–5'7"
M56170–180 cm5'7"–5'11"
L58180–190 cm5'11"–6'3"
